This project will provide an introduction to the concept of the “Internet_of_Things”.

Specifically, we will program a device to provide temperature data, and then make that data publicly available on the web.

(If you’d like to save some time typing in scripts, you can download them here.)

Our component architecture will be as follows:

• The physical layer will be used to capture the temperature data. We will implement this using an Arduino Uno board and a temperature sensor.
• The coordination layer will be used to capture the temperature measurements from the physical layer and for sending the measurements to our application. This will be implemented using Node.js running on a Raspberry Pi. We will also use the Raspberry Pi as a development platform for the Arduino.
• The application layer will be used to visualize the measurements in real-time. This will be implemented using a data visualization cloud service called Plotly.

• Raspberry Pi If you tweak the instructions a bit, it’s not difficult to use a desktop PC or laptop instead of a Raspberry Pi. (Probably easier, in fact.) I’m using a Raspberry Pi – B+, not a Raspberry 2. You can probably use a different model, I just haven’t tried it.
• Arduino with USB cable. I’m using an Arduino Uno. As with the Raspberry Pi, you can probably use a different model.
• breadboard
• TMP36 temperature sensor Similar sensors don’t necessarily report the same temperature data, so keep that in mind if you make a substitution here. For example, the TMP36 reports data in Celsius, whereas the TMP35 reports in Kelvin.
• jumper wires (5)

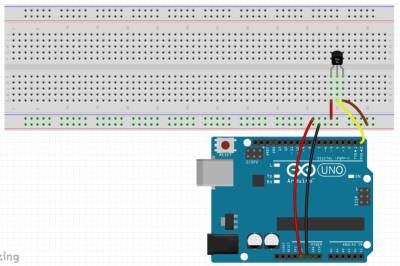

Wire up the Arduino as follows:

(I created this breadboard layout image in Fritzing.)

It’s a very simple setup. We provide power to the temperature sensor, and the sensor returns temperature data via digital pin 0.

To write code and upload it to the Arduino board, you’ll need the free Arduino IDE.

Versions are available for Windows, Mac, and Linux. Since we’re running it on the Raspberry Pi, we’ll be using the Linux version.

1) If you want the latest version, download and install it from here.

2) If using the latest version isn’t important to you (it isn’t required), you can install it from a terminal prompt using apt-get:

sudo apt-get install arduino

The Arduino IDE does have a few dependencies, and required about 80MB on my Raspberry Pi.

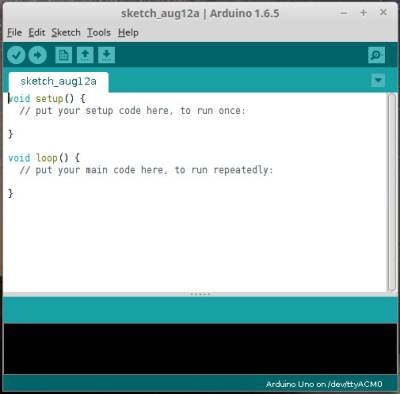

After you install the IDE, plug in the Arduino using the supplied USB cable, then run the IDE.

1. Open the “Tools” menu, go to the “Board” section and make sure your Arduino model is selected.
2. In the “Serial Port” section, make sure the serial port value is selected. Also, note the value of the serial port string. You’ll need it later. (It will look something like this: “/dev/ttyACM0”)

Code for the Arduino is written in Processing. Processing is syntactically very similar to the C, C++, and Java languages. A code module for the Arduino is called a “sketch”.

This is the code we’ll use to get data from the temperature sensor. Type this code into the sketch editor in the Arduino IDE:

templog.ino

/* This is the pin getting the stream of temperature data. */
#define sensorPin 0

float Celsius, Fahrenheit;
int sensorValue;

void setup() {
	Serial.begin(9600);  /* Initialize the Serial communications */
}

void loop() {

	GetTemp();

	Serial.println(Fahrenheit);  /* You can easily change this to print Celsius if you want. */

	delay(2000);  /* Wait 2 seconds before getting the temperature again. */
}

void GetTemp() {
	sensorValue = analogRead(sensorPin);  /* Get the current temperature from the sensor. */

	/*
	* The data from the sensor is in mV (millivolts), where 10mV = 1 degree Celsius.
	* So if, for example, you receive a value of 220 from the sensor, this indicates
	* a temperature of 22 degrees Celsius.
	*/

	Celsius = sensorValue / 10;         /* Convert the sensor value to Celsius */
	Fahrenheit = (Celsius * 1.8) + 32;  /* Convert the Celsius value to Fahrenheit */
}

After you’ve typed in this source code, click the “Verify” button in the toolbar to check the syntax. If you’ve made any mistakes, correct them before continuing.

Once the code is verified, click the “Upload” button in the toolbar to write it to the Arduino’s flash memory.

Once the sketch has been written to the Arduino, it will start running automatically. You can check the values being received from the temperature sensor by opening the serial monitor in the Arduino IDE. To do that, click the “Serial Monitor” button on the right side of the toolbar. A console window will open up, and you should see a stream of data similar to this:

86.0
86.0
86.2
86.2
86.0
85.8
85.8
85.8

Now that we have the Arduino supplying temperature data, the next step is to make it available on the web.

Plotly is an online analytics and data visualization tool. It provides online graphing, analytics, and stats tools for individuals and collaboration, as well as scientific graphing libraries for Python, R, MATLAB, Perl, Julia, Arduino, and REST.

It also has a streaming API, which we’ll use to get our data to the web.

To set up a free Plotly account, go to the Plotly home page here. After you create your account, there are three pieces of information you’ll need to remember. We’ll be using them later:

• Username
• API key
• Streaming API token

To get our data from the Arduino to Plotly, we’ll use Node.js.

First, make sure your system is up-to-date. Open a terminal and issue the following command:

sudo apt-get update

sudo apt-get upgrade -y

(Probably a good idea to reboot after this.)

Then, download and install node.js:

For the wget step, the latest as of this writing seems to be http://nodejs.org/dist/v0.11.9/, but I was not able to get this version to work. I used http://nodejs.org/dist/v0.10.16/.

wget http://nodejs.org/dist/v0.10.16/node-v0.10.16-linux-arm-pi.tar.gz

tar xvfz node-v0.10.16-linux-arm-pi.tar.gz

sudo mv node-v0.10.16-linux-arm-pi /opt/node/

Configure your path:

echo 'export PATH="$PATH:/opt/node/bin"' >> ~/.bashrc

source ~/.bashrc

Open a terminal, and create a directory for your Node.js project. Change your working directory to the new directory. Example:

mkdir temp_nodejs

cd temp_nodejs

We’ll need a couple of additional libraries for our Node.js project, serialport and plotly. Install them using the following commands in your project folder:

npm install serialport

npm install plotly

If you get a “failed to fetch from registry” error when you try to use npm install, you may need to make the following change on your Raspberry Pi:

npm config set registry http://registry.npmjs.org/

(By default, npm install uses https://registry.npmjs.org/)

Now we’re ready to create the Javascript file for Node.js to execute. Use the following as a template:

server.js

var serialport = require('serialport'),
		plotly = require('plotly')('Plotly_UserName', 'Plotly_API'),
		token = 'Plotly_Token';
var portName = '/dev/tty.usbmodem1411';
var sp = new serialport.SerialPort(portName, {
	baudRate: 9600,
	dataBits: 8,
	parity: 'none',
	stopBits: 1,
	flowControl: false,
	parser: serialport.parsers.readline("\r\n")
});

// helper function to get a nicely formatted date string
function getDateString() {
	var time = new Date().getTime();
	// 32400000 is (GMT+9 Japan)
	// for your timezone just multiply +/-GMT by 36000000
	var datestr = new Date(time + 32400000).toISOString().replace(/T/, ' ').replace(/Z/, '');
	return datestr;
}

var initdata = [{x: [], y: [], stream: {token: token, maxpoints: 500}}];
var initlayout = {fileopt: "extend", filename: "ambient-fahrenheit-temperature-sensor"};

plotly.plot(initdata, initlayout, function (err, msg) {
	if (err)
		return console.log(err)

	console.log(msg);
	var stream = plotly.stream(token, function (err, res) {
		console.log(err, res);
	});

	sp.on('data', function (input) {
		if (isNaN(input) || input > 1023)
			return;

		var streamObject = JSON.stringify({x: getDateString(), y: input});
		console.log(streamObject);
		stream.write(streamObject + '\n');
	});
});

Make sure your Arduino board is plugged in, then start your Node.js server by issuing the following command:

node server.js

You should see information similar to the following:

{ streamstatus: 'All Streams Go!',
  url: 'https://plot.ly/~username/44',
  message: '',
  warning: '',
  filename: 'ambient-fahrenheit-temperature-sensor',
  error: '' }
{"x":"2015-08-16 08:55:57.418","y":"87.80"}
{"x":"2015-08-16 08:55:59.417","y":"86.00"}
{"x":"2015-08-16 08:56:01.415","y":"86.00"}
{"x":"2015-08-16 08:56:03.414","y":"86.00"}
{"x":"2015-08-16 08:56:05.413","y":"86.00"}

This indicates that the Node.js server is receiving data from the Arduino board and sending it to Plotly. The server will continue to log data until you press [Ctrl-C] to stop it.

While the Node.js server is running, open a web browser and log in to your Plotly account. Click the “Organize” link at the top of the screen, then click the “Open Plot” button on the “ambient-fahrenheit-temperature-sensor” project.

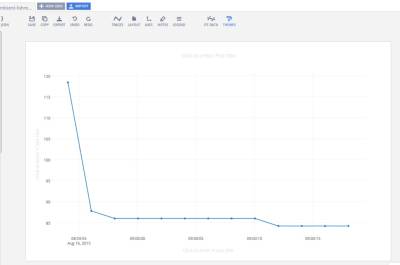

After the project opens, you should see a graph similar to this, updating in real-time:

Plotly projects are public by default, so you are now sharing your real-time temperature data with the world!

Using some inexpensive, low-powered hardware, we were able to provide some (somewhat) useful information on the web for public consumption.

Hopefully this will inspire you to create some IoT projects of your own. Good luck!
